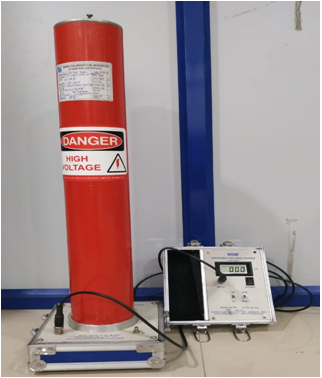

Range : 0-100 kV AC/DC Accuracy : 1.5% Rdg. Application : High Voltage Calibration In house as well as On-Site of H.V divider, H.V tester,H.V. Probe
Application : DEAD WEIGHT TESTER & PRESSURE GAUGE calibration
Range : Dead Weight Tester up to 1000bar with CMC 0.014% & accuracy 5ppm Digital Pressure Gauge up to 1750bar with CMC from 0.06bar to 0.23bar

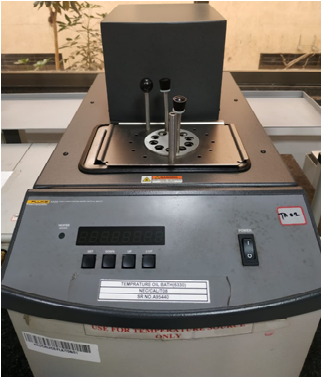

Application :SPRT/PRT/PT-100/THERMOCOUPLE calibration
Range : -80°C to 100°C with CMC 0.016°C & up to 1200°C CMC 1.7°C

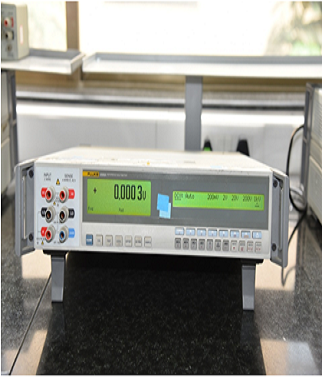

Application :8½, 6½, 5½, 4½, 3½ Digit Multi meters, LCR Meter, Waveform Generators calibration
Range : AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency etc.

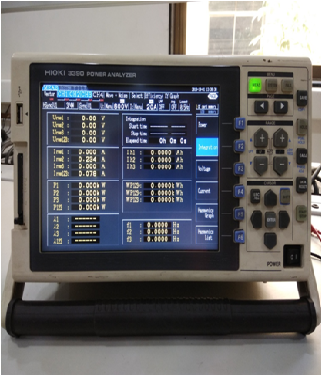

Application :calibration of Single & Three Phase Power/Energy Meter, Comparator etc.
Range :Voltage 1V to 1000V, Current 500mA to 500A, Power Factor 0.2 Lag/Lead to UPF, Harmonics up to 50th Order, THD Measurements
Application : Calibration of highly precise Multifunction calibrator / Universal calibrators /Multiproduct calibrators, Resistance Source,Process calibrators, Decade Resistance Box. Range : AC/DC Voltage, AC/DC Current, Resistance
Application : : Calibration of Single & Three Phase Power/Energy Meter, Comparator etc. with 100ppm accuracy and 0.02% CMC
Range : : Voltage 30V to 320V, Current 1mA to 120A, Power Factor 0.2 Lag/Lead to UPF, Harmonics up to 39th Order, THD Measurements

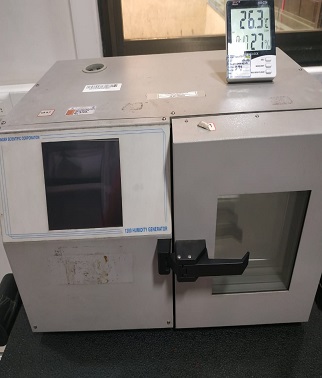

Application : Calibration of Thermo Hygrometer, Humidity Sensor/Switch/Transmitter .
Range :Temperature 10°C to 60° with CMC 0.22°C & Humidity 10% to 95% with CMC 1.206%
Range :10kVp to 300kVp AC
Application : Impulse Test on
• LT Switchgear Products
• MV Switchgear Products
• Current Transformer
• Potential Transformers
• Insulators / Bushings
• Cables / Fuse, Switches
• Vacuum Contactors.
Range : 1kV to 100kV AC
Application :• High Voltage Test (Power Frequency)
• LT Switchgear Products
• MV Switchgear Products
• Current Transformer
• Insulators & Bushings
• Cables
• Insulating Materials Etc.
Range : Up to 10kV

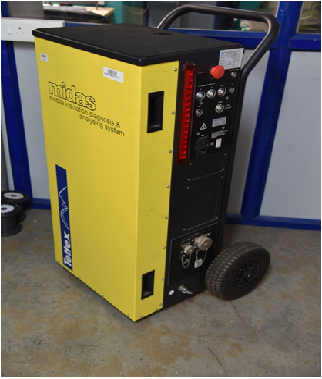

Application :• Capacitance & Tan Delta Measurement on
• All oil immersed products
• Distribution Transformer
• Power Transformers

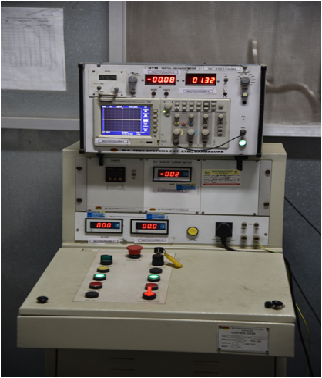

Range : Up to 50000pC,100kV AC
Application :• • LT Switchgear Products
• MV Switchgear Products
• Current Transformer
• Potential Transformers
• Insulators / Bushings
• Cables / Fuse, Switches
• Vacuum Contactors.

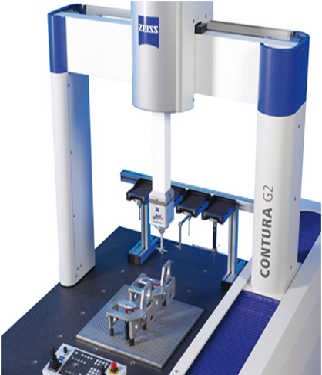

Range : 700 X 700 X 600 mm
Application :• Coordinate Measurements
• Geometrical, Linear Dimensions
• Orientation dimensions
Range :Up to 200A DC

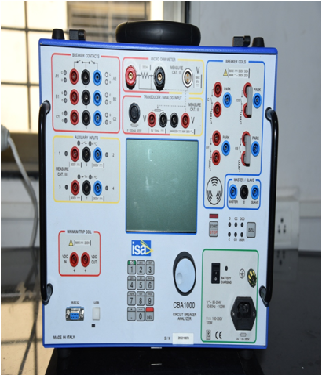

Application :• Analysis of circuit breaker performance characteristics
• To conduct mechanical endurance test on circuit breaker
• Static & Dynamic contact resistance measurement
Range :200 X 150 X 150 mm

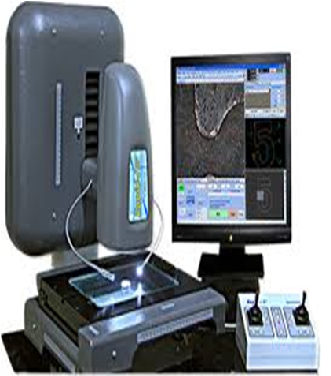

Application :• Contactless Inspection
• 2D Scanning (Manually)

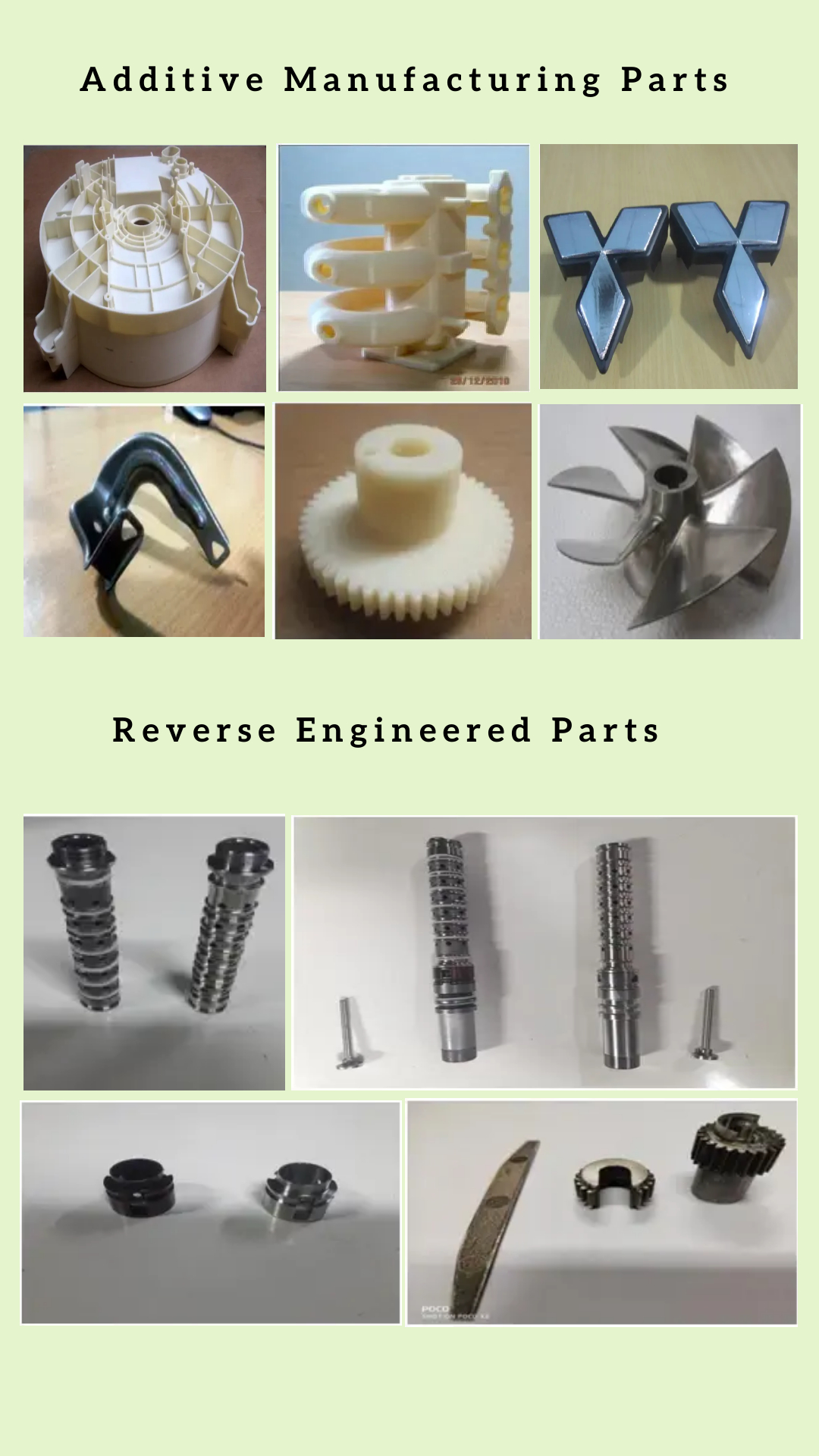

• Reverse Engineering
